HGW系列--重负荷法兰型直线导轨
上银HGW系列导轨特点:
1.可同时承受上下左右方向的负荷
由于直线导轨特殊的束制结构设计,可同时承受上下左右方向的负荷,不像滑动导引在平行接触面方向可承受的侧向负荷较轻,易造成机台运行精度不良。
2.组装容易并具互换性
组装时只要铣削或研磨床台上导轨之装配面,并依建议之步骤将导轨、滑块分别以特定扭力固定于机台上,即能重现加工时的高精密度。传统的滑动导引,则须对运行轨道加以铲花,既费事又费时,且一旦机台精度不良,又必须再铲花一次。直线导轨具有互换性,可分别更换滑块或导轨甚至是直线导轨组,机台即可重新获得高精密度的导引。
3.润滑构造简单
滑动导引若润滑不足,将会造成接触面金属直接摩擦损耗床台,而滑动导引要润滑充足并不容易,需要在床台适当的位置钻孔供油。直线导轨则已在滑块上装置油嘴,可直接以注油枪打入油脂,亦可换上专用油管接头连接供油油管,以自动供油机润滑。
注:1kgf=9.81N

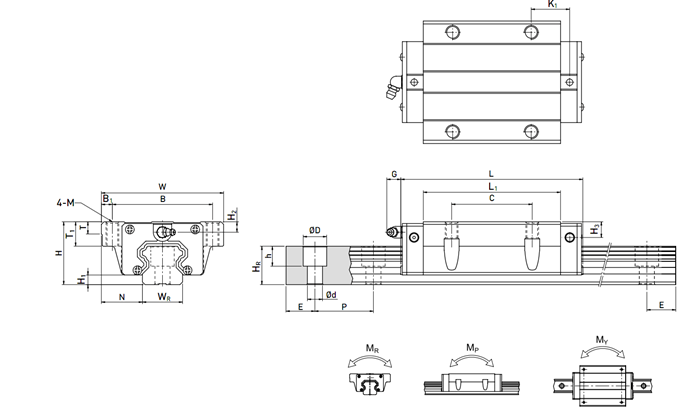

型号 |
组件尺寸(mm) |
滑块尺寸(mm) |
滑轨尺寸(mm) |
||||||||||||||||||||
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
K2 |
G |
M |
T |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
|
HGW15CA/CB/CC |
24 |
4.3 |
16 |
47 |
38 |
4.5 |
30 |
39.4 |
61.4 |
8 |
4.85 |
5.3 |
M5/Φ4.5 |
6 |
3.95 |
3.7 |
15 |
15 |
7.5 |
5.3 |
4.5 |
60 |
20 |
HGW20CA/CB/CC |
30 |
4.6 |
21.5 |
63 |
53 |
5 |
40 |
55.5 |
77.5 |
10.25 |
6 |
12 |
M6/Φ6 |
8 |
6 |
6 |
20 |
17.5 |
9.5 |
8.5 |
6 |
60 |
20 |
HGW20HA/HB/HC |
65.2 |
92.2 |
17.6 |
||||||||||||||||||||
HGW25CA/CB/CC |
36 |
5.5 |
23.5 |
70 |
57 |
6.5 |
45 |
58 |
84 |
11.8 |
6 |
12 |
M8/Φ7 |
8 |
6 |
5 |
23 |
22 |
11 |
9 |
7 |
60 |
20 |
HGW25HA/HB/HC |
78.6 |
104.6 |
22.1 |
||||||||||||||||||||
HGW30CA/CB/CC |
42 |
6 |
31 |
90 |
72 |
9 |
52 |
70 |
97.4 |
14.25 |
6 |
12 |
M10/Φ9 |
8.5 |
6.5 |
10.8 |
28 |
26 |
14 |
12 |
9 |
80 |
20 |
HGW30HA/HB/HC |
93 |
120.4 |
25.75 |
||||||||||||||||||||
HGW35CA/CB/CC |
48 |
7.5 |
33 |
100 |
82 |
9 |
62 |
80 |
112.4 |
14.6 |
7 |
12 |
M10/Φ9 |
10.1 |
9 |
12.6 |
34 |
29 |
14 |
12 |
9 |
80 |
20 |
HGW35HA/HB/HC |
105.8 |
138.2 |
27.5 |
||||||||||||||||||||
HGW45CA/CB/CC |
60 |
9.5 |
37.5 |
120 |
100 |
10 |
80 |
97 |
139.4 |
13 |
10 |
12.9 |
M12/Φ11 |
15.1 |
8.5 |
20.5 |
45 |
38 |
20 |
17 |
14 |
105 |
22.5 |
HGW45HA/HB/HC |
128.8 |
171.2 |
28.9 |
||||||||||||||||||||
HGW55CA/CB/CC |
70 |
13 |
43.5 |
140 |
116 |
12 |
95 |
117.7 |
166.7 |
17.35 |
11 |
12.9 |
M14/Φ14 |
17.5 |
12 |
19 |
53 |
44 |
23 |
20 |
16 |
120 |
30 |
HGW55HA/HB/HC |
155.8 |
204.8 |
36.4 |
||||||||||||||||||||
HGW65CA/CB/CC |
90 |
15 |
53.5 |
170 |
142 |
14 |
110 |
144.2 |
200.2 |
23.1 |
14 |
12.9 |
M16/Φ16 |
25 |
15 |
15 |
63 |
53 |
26 |
22 |
18 |
150 |
35 |
HGW65HA/HB/HC |
203.6 |
259.6 |
52.8 |
型号 |
滑轨固定螺栓尺寸 |
基本动额定负荷 |
基本静额定负荷 |
容许静力矩(KN-m) |
重量(kg) |
|||
(mm) |
C(KN) |
C0(KN) |
MR |
MP |
MY |
滑块 |
导轨/米 |
|
HGW15CA/CB/CC |
M4×16 |
11.38 |
16.97 |
0.12 |
0.10 |
0.10 |
0.17 |
1.45 |
HGW20CA/CB/CC |
M5×16 |
17.75 |
27.76 |
0.27 |
0.20 |
0.20 |
0.40 |
2.21 |
HGW20HA/HB/HC |
21.18 |
35.90 |
0.35 |
0.35 |
0.35 |
0.52 |
||
HGW25CA/CB/CC |
M6×20 |
26.48 |
36.49 |
0.42 |
0.33 |
0.33 |
0.59 |
3.21 |
HGW25HA/HB/HC |
32.75 |
49.44 |
0.56 |
0.57 |
0.57 |
0.80 |
||
HGW30CA/CB/CC |
M8×25 |
38.74 |
52.19 |
0.66 |
0.53 |
0.53 |
1.09 |
4.47 |
HGW30HA/HB/HC |
47.27 |
69.16 |
0.88 |
0.92 |
0.92 |
1.44 |
||
HGW35CA/CB/CC |
M8×25 |
49.52 |
69.16 |
1.16 |
0.81 |
0.81 |
1.56 |
6.30 |
HGW35HA/HB/HC |
60.21 |
91.63 |
1.54 |
1.40 |
1.40 |
2.06 |
||
HGW45CA/CB/CC |
M12×35 |
77.57 |
102.71 |
1.98 |
1.55 |
1.55 |
2.79 |
10.41 |
HGW45HA/HB/HC |
94.54 |
136.46 |
2.63 |
2.68 |
2.68 |
3.69 |
||
HGW55CA/CB/CC |
M14×45 |
114.44 |
148.33 |
3.69 |
2.64 |
2.64 |
4.52 |
15.08 |
HGW55HA/HB/HC |
139.35 |
196.20 |
4.88 |
4.57 |
4.57 |
5.96 |
||
HGW65CA/CB/CC |
M16×50 |
163.63 |
215.33 |
6.65 |
4.27 |
4.27 |
9.17 |
21.18 |
HGW65HA/HB/HC |
208.36 |
303.13 |
9.38 |
4.38 |
7.38 |
12.89 |
